Night Vision

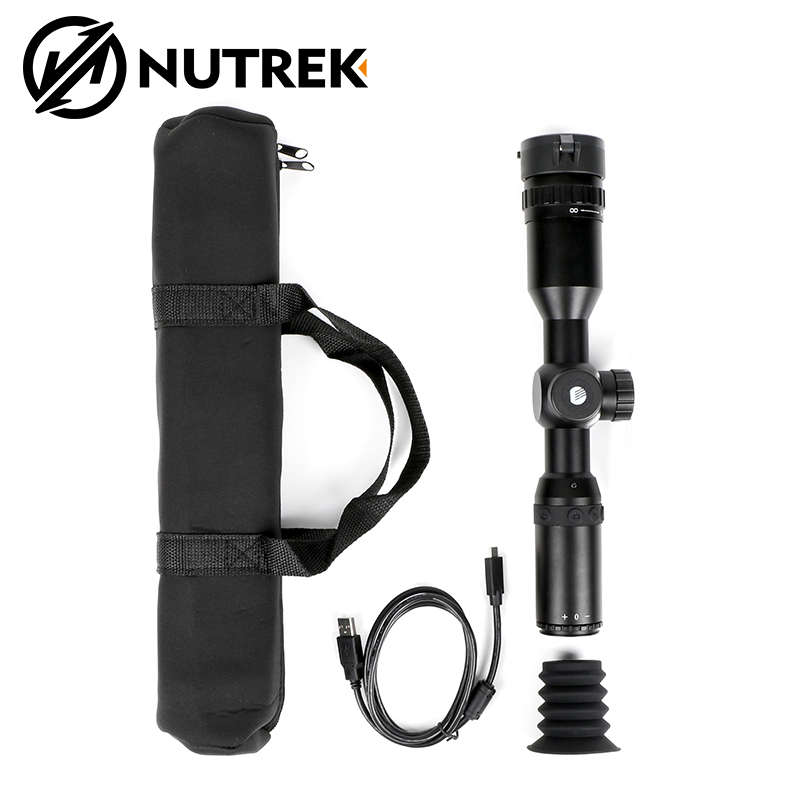

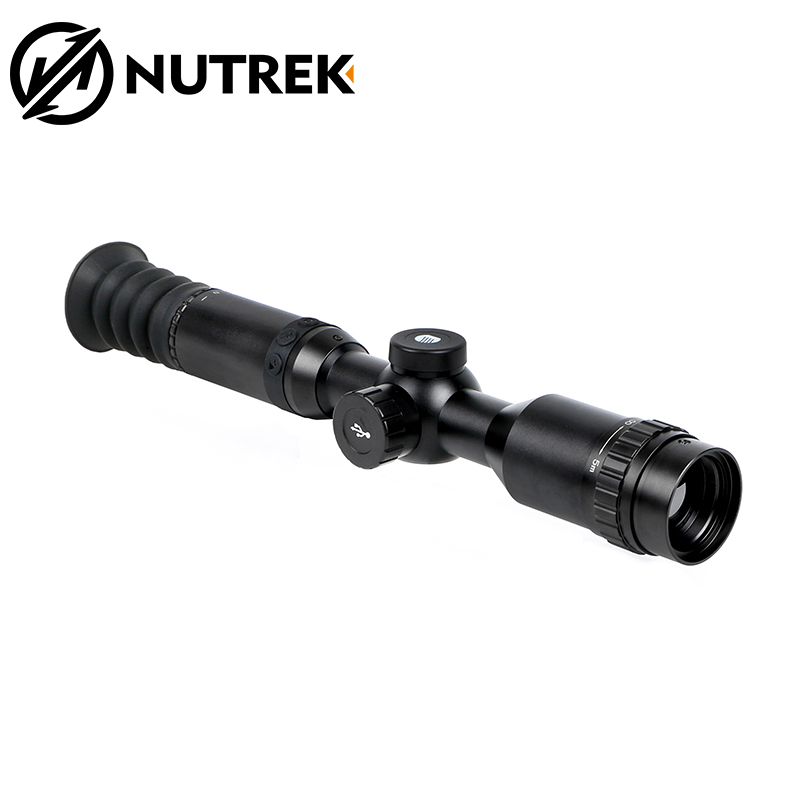

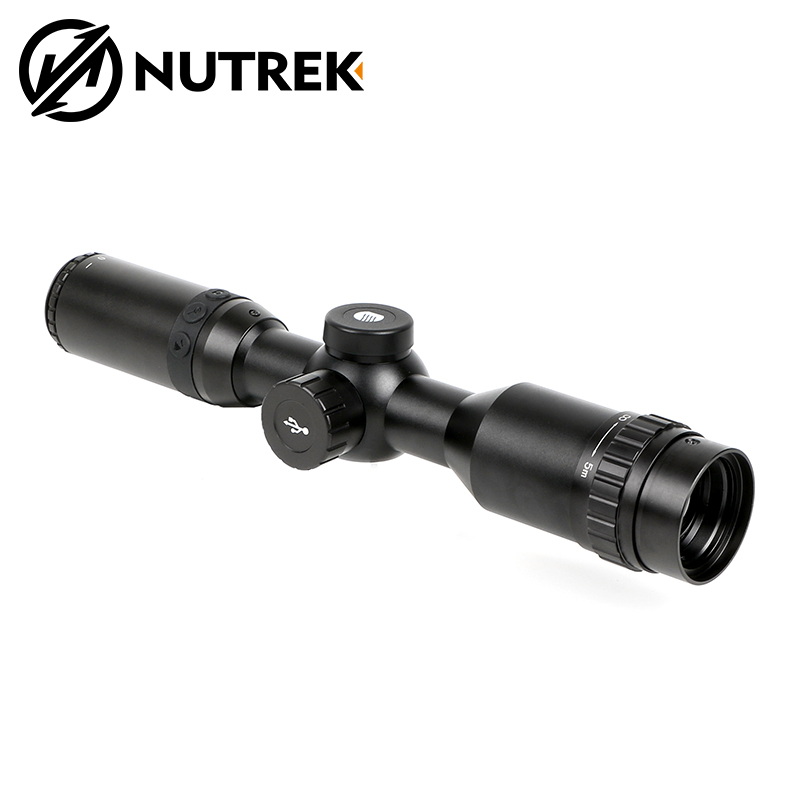

Huntex Thermal Riflescope

Item No.: NVS05T
HUNTEX series thermal scopes are available in 3 different sizes of objectives as well as magnification ranges, to adapt for varied hunting scenarios of different shooting ranges. Comes with the function to take pictures/video, and the scope can also serve as a camera recorder of your exciting moment.
get a free quote

OVERVIEW

Designed for game hunters specifically, the NUTREK HUNTEX series Thermal Riflescopes are built with a popular 30mm tube diameter that is most versatile and easy to mount with suitable scope rings onto any hunting rifle. Simple structure and lightweight, the HUNTEX series thermal scopes are available in 3 different sizes of objectives as well as magnification ranges, to adapt for varied hunting scenarios of different shooting ranges. Comes with the function to take pictures/video, and the scope can also serve as a camera recorder of your exciting moment.

* 12μm 384x288 pixel detector with 1280x960 high definition display

* 30mm tube diameter for easy mounting with scope rings to any hunting rifles

* Built-in rechargeable lithium battery with 5 hours long service time

* Record picture/video for capturing an exciting hunting experience

FEATURES

  • Color

    -

SPECIFICATION


ITEM NVS05T-25 NVS05T-35 NVS05T-50
Model 2.3-9.2x25 3.2-12.8x35 4.7-18.8x50
Optical Magnification 2.3x 3.2x 4.7x
Electronic Zoom 1~4x
System Magnification 2.3-9.2x 3.2-12.8x 4.7-18.8x
Objective Aperture 25mm 35mm 50mm
Detercor Type VOx Uncooled FPA
Pixel 384x288
Pixel Pitch 12μm
NETD 40mk
Field of View (±5%) 10.6°x7.9° 7.5°x5.7° 5.3°x4.0°
Frame Rate 50Hz
Focus Manual
Display LCOS 1280x960
Exit-pupil Distance 55mm
Brightness/Contrast Adjustable
Imaging Palette Black Hot / White Hot
Picture in Picture Yes
Division Yes
WIFI Yes
Storage 32G
Storage Content Picture / Video
Battery Type Built-in Lithium Battery
Working Hour 5H
Connector Socket Type-C (Charging, Data Transmission)
Shock-G Rating 800G
Anti-Vibration 2g, GB/T2423.10 (IEC60068-2-6)
Waterproof Level IP66
Electromagnetic Compatibility Comply with CE requirements
Working Humidity 0~95%
Working Temperature -20°C~+50°C
Storage Temperature -40°C~+70°C
Size (w/o eye shield) 320x75x65mm (w/o eye shield)
Weight (w/o Battery) <900g
Weight (with Battery) <900g
  Observation Distance
(Meteorological Conditions: 25°C, 1atm, Visibility 10Km, 60% Relative Humidity.)
Human Size: 1.8x0.5m
Vehicle Size: 2.3x2.3m
Detection Distance - Human 1000m 1400m 1900m
Detection Distance - Vehicle 1600m 2200m 3200m
Recognition Distance - Human 500m 700m 1000m
Recognition Distance - Vehicle 800m 1100m 1600m
